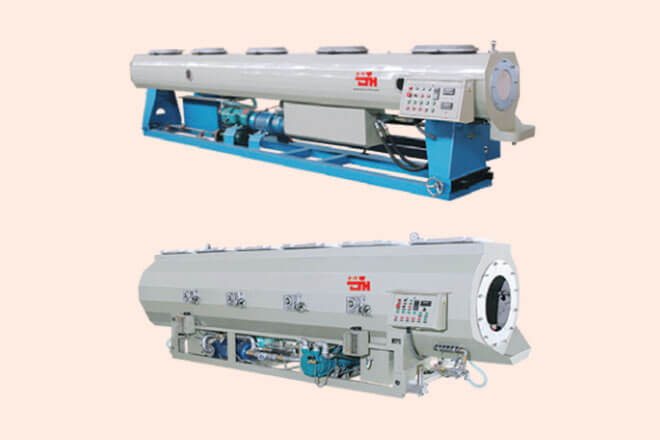

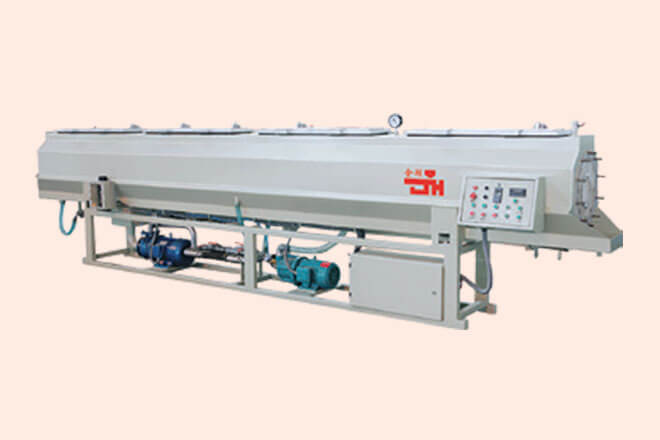

PVC PE Vacuum Calibration Tank
GET QUOTATION NOW

Characteristics of the equipment

1.Optimized design tank and water pipe system made from stainless steel.

2.Water pipe and vacuum system stability and adjustable.

3.Vacuum table adjustable in 3-D direction.

Application

PVC Vacuum Calibration Tank

Model FZD63×2 FZD63-S FZD63 FZD110-S FZD110 FZD160 FZD250 FZD400 FZD630 FZD800
Pipe range（mm) φ16-φ63 φ16-φ63 φ16-φ63 φ63-φ110 φ63-φ110 φ63-φ160 φ110-φ250 φ200-φ400 φ315-φ630 φ400-φ800
Water pump（Kw）(s) 7.5 2×4 4 2×4 5.5 5.5 7.5 2×5.5 2×7.5 3×7.5
Vacuum pump（Kw）(s) 4 2×2.2 3 2×3 3 4 5.5 2×4 2×4 4×4
Lenght o f vacuum
calibration tank （mm）		 6000 10000

PE Vacuum Calibration Tank

Model STV63 STV125 STV250 STV450 STV630 STV800 STV1000 STV1200 STV1400 STV1600 ST2000
Pipe range（mm) φ16-φ63 φ32-φ125 φ63-φ250 φ110-φ450 φ250-φ630 φ315-φ800 φ500-φ1000 φ630-φ1200 φ710-φ1400 φ1000-φ1600 φ1400-φ2000
Water pump（Kw）(s) 4 5.5 7.5 2×5.5 2×7.5 3×7.5 2×4+4×4 2×7.5+4×11 2×7.5+4×11 2×7.5+4×11 2×11+4×11
Vacuum pump（Kw）(s) 2.2 3 5.5 2×4 2×4 4×4 2×5.5+4×7.5 2×4+4×5.5 2×5+4×5.5 2×5+4×5.5 2×5+4×5.5
Lenght o f vacuum
calibration tank （mm）		 6000 1500+8500 1500+10500 2500+8000
